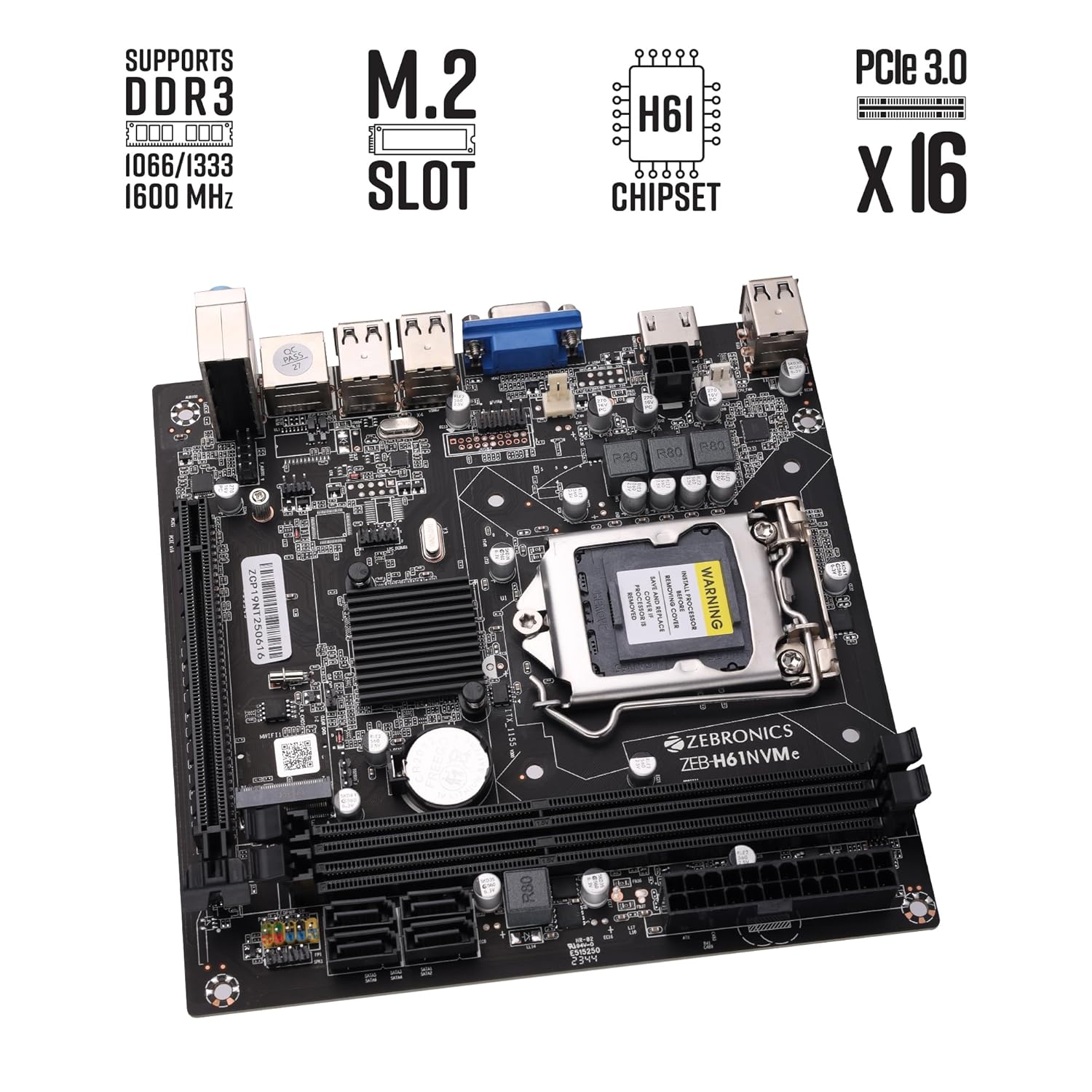

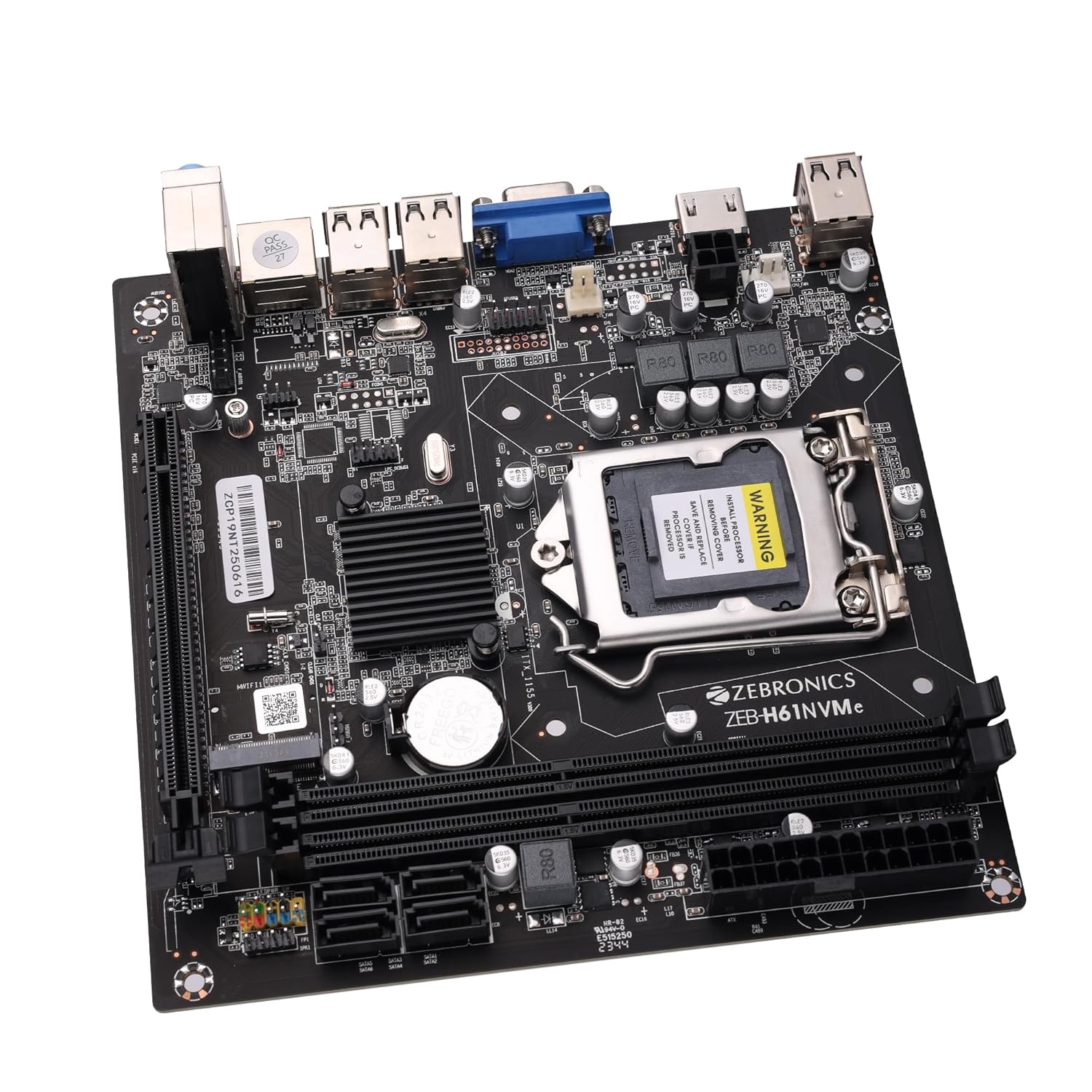

ZEBRONICS H61-NVMe Micro-ATX Motherboard for LGA 1155 Socket, Supports Intel 2nd & 3rd Generation Processors, M.2 Slot, 5.1 Audio, DDR3 1600 MHz, Ports (RJ45 | SATA | USB | HDMI)

Overview

The ZEBRONICS H61-NVMe Micro‑ATX motherboard is engineered for Intel’s 2nd and 3rd generation Core processors, delivering a compact yet powerful platform for gaming, productivity, and multimedia. With a robust feature set, it offers high‑speed storage, immersive audio, and versatile connectivity—all within a small form factor.

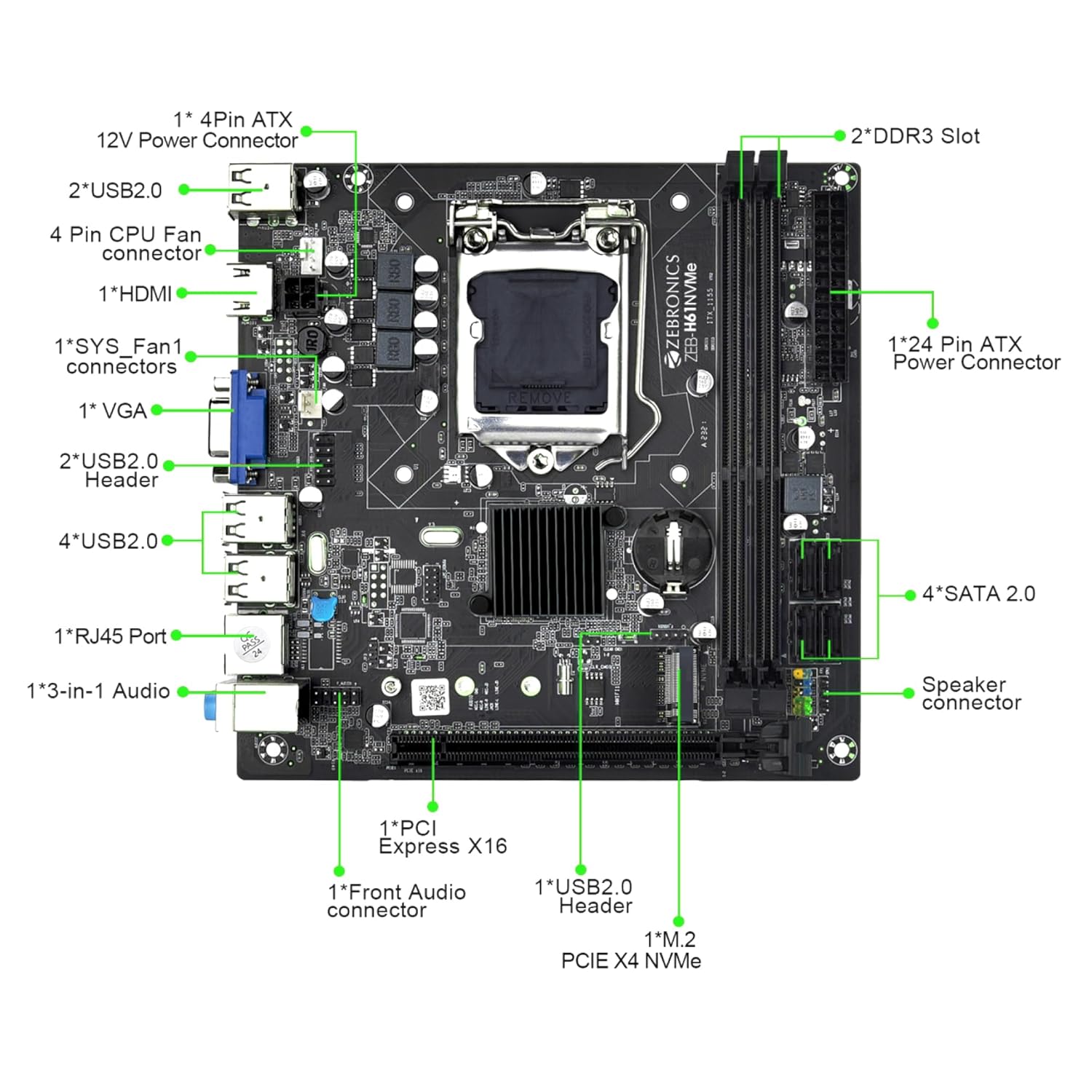

Key Features

• CPU Compatibility: LGA1155 socket supports Intel Core i7/i5/i3 (2nd & 3rd Gen)
• Storage: 1 x M.2 2280 NVMe PCIe 3.0 x4 slot + 6 x SATA 6Gb/s ports
• Memory: 2 x DDR3 DIMM slots, 8GB max, 1600MHz, dual‑channel
• Audio: 5.1 channel Realtek ALC892 with high‑definition audio codec
• Networking: 1 x 1Gbps RJ45 LAN, 2 x USB 3.0, 4 x USB 2.0, HDMI output

Build Quality & Design

Featuring a durable metal backplate and a compact Micro‑ATX footprint (9.6 x 9.6 cm), this board is ideal for mini‑PC builds, HTPCs, and small form‑factor gaming rigs. The board’s robust power delivery and heat‑sink design ensure stable operation under load.

Connectivity

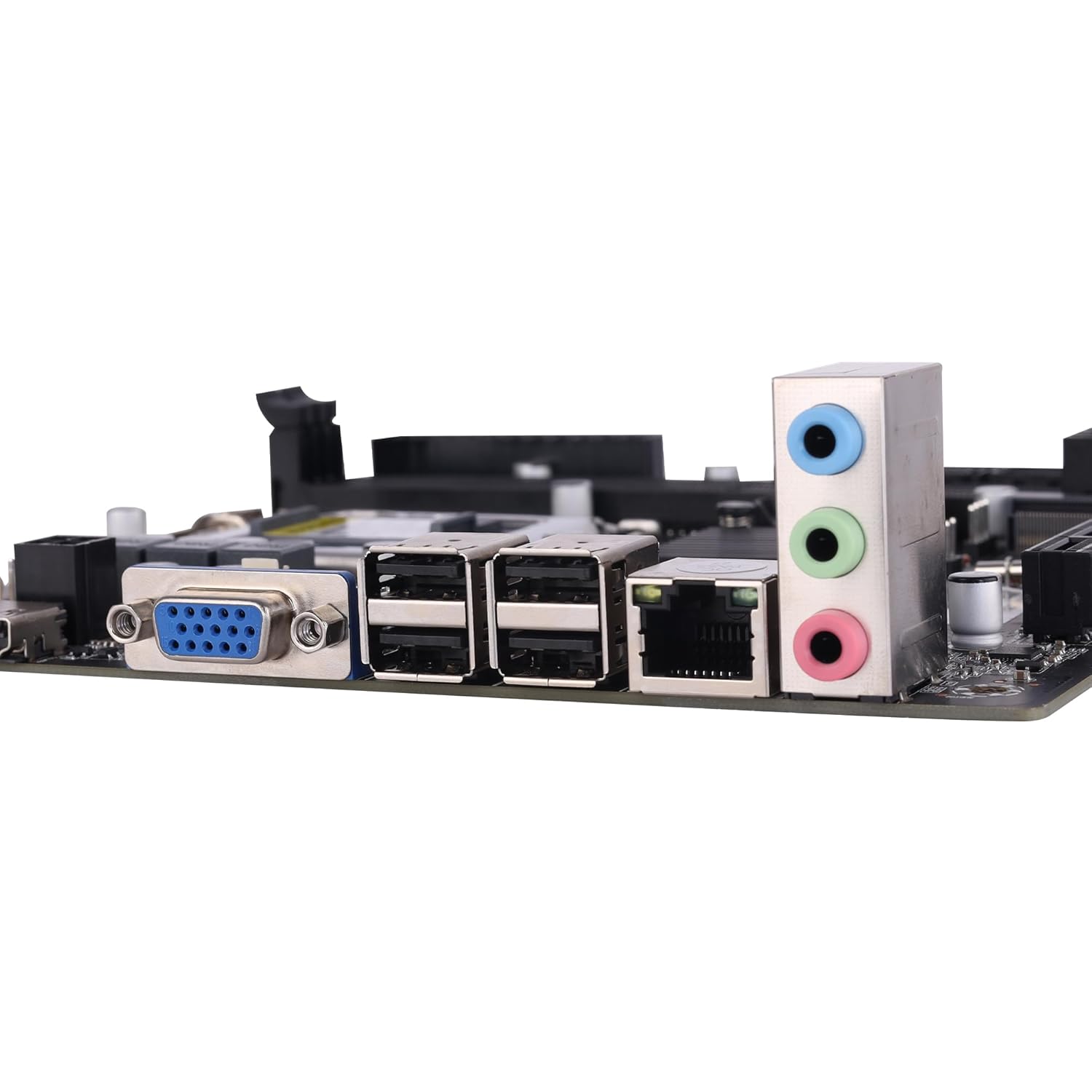

Front panel connectors include USB 3.0, USB 2.0, audio jacks, and power/reset buttons. Rear I/O offers HDMI, RJ45, SATA, USB 3.0/2.0, and a 3.5mm audio jack.

Audio & Multimedia

The Realtek ALC892 codec delivers crystal‑clear sound with 5.1 surround support. Integrated headphone and microphone jacks provide a complete audio solution without the need for an external sound card.

Installation & Compatibility

Easy to install with a standard Micro‑ATX case. The board supports Windows 10/11, Windows 8.1, and most Linux distributions. BIOS updates are available via USB for enhanced compatibility.

Warranty & Support

ZEBRONICS offers a 3‑year limited warranty and comprehensive online support resources, ensuring peace of mind for both hobbyists and professionals.

* Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only.
